RadarPlus^® SM161R-2 series Dual AIS Receivers

includes the SM161R-2, SM161RG-2, SM161RGN-2, and SM161RGESP-2

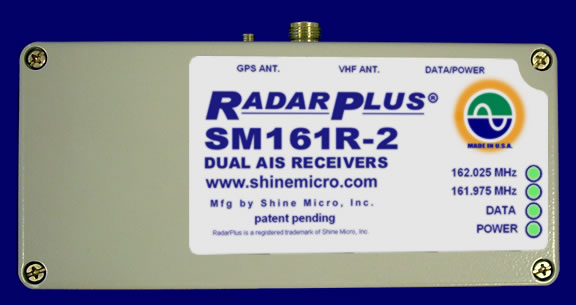

RadarPlus SM161R-2 dual AIS Receiver

The RadarPlus SM161R-2 dual AIS receiver provides:

High-sensitivity AIS data reception

Affordable low price

Hears Class A & B vessel reports

Sends the information to be mapped on a PC or chart-plotter

Less than 1 watt power consumption

AIS REPORTS:

Vessel Name

Size

Position

Course

Cargo

and More

OPTIONAL FEATURES:
Enhanced Signal Analysis Package (ESP)

Slot Numbering

Packet Time of Arrival

Partial Packet Reception

VDL Loading

Received Signal Strength Indication

Ambient Noise Measurement

Ethernet Network Capability
Connection to Live Shine Micro AIS Network

NEW AND IMPROVED:

Dual Stage RF Input Protection

Receiver Sensitivity of -113dbm

The rugged, industry standard SL161R has now been improved; incorporating dual stage RF input protection to provide superior protection against near lightning strikes and high power transmitters. In addition, with a receiver sensitivity of -113dbm the SM161R-2 is even better than the industry-leading SL161R. An Automatic Identification System, or AIS, has become an indispensable tool for navigation and safety at sea. Information gathered by the RadarPlus is more detailed than radar and enables the everyday boater to see what's coming long before it is in line of sight.

With the addition of the embedded 12 channel GPS receiver and the optional Enhanced Signal Analysis software, supplemental diagnostic functions become available such as:

SLOT NUMBERING
PACKET TIME OF ARRIVAL
PARTIAL PACKET RECEPTION
VDL LOADING
RECEIVED SIGNAL STRENGTH INDICATION
AMBIENT NOISE MEASUREMENT

System Specifications

Designation: Universal Automatic Identification System (AIS) Receiver

Serial RS232 Interface: female DB9 connector, see below for additional serial interface details

Power Supply: 9 to 20 V nominal

Power Consumption: Less than 1 watt

Temperature Range: -15 to +55 degrees C.

Compass Safe Distance: 1 meter

Navigation Specifications

12 channel internal Global Positioning System (GPS) *OPTIONAL*

GPS antenna interface: SMA connector

Dimensions and Weights

Width: 3.15 in.

Length: 6.89 in.

Height: 2.25 in'

Weight: 2 lb.

Frequencies and Channel Bandwidth

RX AIS1: 161.975 MHz at 25 kHz

RX AIS2: 162.025 MHz at 25 kHz

AIS Receivers

AIS Data Rate: 9,600 bits/s

Sensitivity: 20% PER @ -113dBm

Adjacent Channel Rejection: 70dB at 25 kHz

Blocking: 80 dB

Intermodulation: 65 dB

Large Signal PER: 0.1% or better

Image Rejection: 70 dB for 20% PER

Spurious Rejection: 70 dB for 20% PER

Antenna Interface: female Type N connector

Enhanced Signal Analysis Package

Received Signal Strength Indication

Slot Numbering

VDL Loading

Ambient Noise Measurement

Packet Time of Arrival

Partial Packet Reception

Serial Interface Details
The serial interface of the RadarPlus is a subset of IEC specification 61993-2, using a 38.4 kbps connection to a host computer. The received AIS messages are output using the VDM sentence, and GPS location data is output using the NMEA 0183 sentences. To request full serial interface specifications, please contact us or call Shine Micro at (360) 437-2503.

Software Tested
The RadarPlus allows AIS enabled software to chart ship positions and descriptions in real-time. The following packages have been tested and are fully operational with the SM161R-2:

Rose Point - Coastal Explorer

ICAN - Regulus

Transas - NaviSailor

Xanatos - Titan

Nobeltec - Admiral

EuroNav - seaPro

Chyna Sea - MapTech

Simple Marine Installation

Mount the SM161R-2 according to the provided mounting diagram.
Connect the power cable to a 12 volt power source.
Connect a VHF antenna to the Type N connector on the SM161R-2.
Optionally connect the serial interface cable to a PC or other AIS display device.

WARRANTY INFORMATION
Shine Micro warrants its products to be free from defects for one full year from the date of purchase. Shine Micro will, at its sole discretion, repair or replace any components that fail in normal use. Labor and material costs for such repairs or replacement will be free of charge. This warranty does not cover failures due to abuse, misuse, accidents, or unauthorized alterations or repairs.
