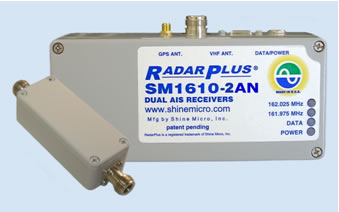

RadarPlus® SM1610-2AN
Rugged, High Sensitivity, Long Range, Frequency Agile Dual AIS Receivers
|
RADARPLUS® SM1610-2AN: Industry-proven
performance in a frequency agile receiver.
The SM1610-2AN is designed to meet all of the receiving requirements of AIS Base Stations per ITU-R M.1371-3.

|
|
The RadarPlus SM1610-2AN serial data output provides the location of all AIS
transponders within range and will drive most popular marine charting software
packages and ECDIS available today.
| PROVEN POWERFUL PERFORMANCE |
| Building from the proven success of
the SM1610, the SM1610-2AN is one
of the most powerful AIS tools on the
market, with demonstrated long range
performance.
|
System performance and installation
flexibility are optimized through an
external Low Noise Amplifier (LNA)
whose frequency is optimally-matched
to the receiver and designed to be
mast mounted at the antenna.
|
- Maximum Range AIS Reception
- Power Consumption < 2.5w
- 12-Channel Internal GPS
- Shine Micro's ESP Software
- Mast-Mounted, Optimal Frequency-Matched LNA Included
|
- Superior Protection Against Co-Located Transmitters and Near Lightning Strikes
- Coverage of AIS1 and 28B or AIS2 and 28B VHF Frequencies
- Compatible with Shine Micro Tracker and Pinger Products
|
- Designation: AIS RX base station per ITU R M.1371-3
- Serial interface: RS232 (standard); Ethernet and IEC 61162 are optional
- Power Supply: 12 to 30 V and 120V AC
- Power Consumption: < 2.5 watts
- Temperature Range: -15 to +55 degrees C.
- Compass Safe Distance: 1 meter
| Navigation Specifications |
- 12 channel internal Global Positioning System (GPS)
- GPS antenna interface: female SMA connector
- Width: 3.15 in.
- Length: 6.89 in.
- Height: 2.25 in'
- Weight: < 2 lb.
| Frequencies and Channel Bandwidth |
- 161.975 - 162.025 MHz in 25 KHz Steps
- Compliant with IEC62320-1
- AIS Data Rate: 9,600 bits/s
- Sensitivity: <20% PER @ -117 dBm w/ SM1610-2AN LNA
- Co-channel Rejection: -10 dB
- Adjacent Channel Selectivity: 70 dB
- Blocking: 84 dB
- Intermodulation: 74 dB
- Large Signal PER: 1% or better
- Image Rejection: 70 dB
- Spurious Rejection: 70 dB
- Antenna Interface: female Type N connector w/ LNA power
|
| Enhanced Signal Analysis Package |
Enhanced sensitivity with analysis features including:
- Received Signal Strength Indication
- Slot Numbering
- VDL Loading
- Ambient Noise Measurement
- Packet Time of Arrival
| Serial Interface Details: |
The serial interface of the RadarPlus conforms
to ITU R M.1371-3 and NMEA 0183 V3.0 with
additional proprietary sentences. The received
AIS messages are output using the VDM
sentence, and GPS location data is output using
the NMEA 0183 sentences.
To request full serial interface specifications, please contact
us or call Shine Micro at (360) 437-2503.
- Enclosure: Weather Resistant
- Connector Type: female Type N
- Frequency: 162 MHz
- Noise Figure: < 2 dB
- Gain: >12 dB
- Power Supply: Coax Bias, 3.3 VDC from Receiver
- Multi-Stage input protection
WARRANTY INFORMATION
Shine Micro warrants its products to be free from defects for
one full year from the date of purchase. Shine Micro will, at
its sole discretion, repair or replace any components that fail
in normal use. Labor and material costs for such repairs or
replacement will be free of charge. This warranty does not
cover failures due to abuse, misuse, accidents, or
unauthorized alterations or repair.
|
|
|
