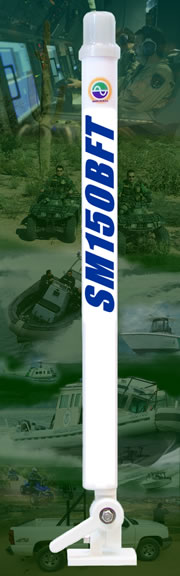

RadarPlus® SM150BFT
BLUE FORCE TRACKING
|
|
The SM162BFT is designed specifically for AIS surveillance PLUS
encrypted tracking.
- AIS Receiver
- MURS Receiver
- Encrypted MURSTransmitter
- 12-channel GPS
- VHF antenna
- GPS antenna
- Contained in a 25 inch tube
- Mounts on a standard marine base
With the encrypted transmission of vessel name, call sign, size,
position, and more, the SM150BFT is a comprehensive secure tracking
system. And now, with Short Text Messaging (STM), communication
is easier than ever.
FEATURES
- Encrypted Tracking
- AIS Surveillance
- Installs in minutes
- Short Text Messaging (STM)
INTERFACE
- AIS: NMEA 0183 HS V3.0 / IEC 61162
- MURS: RS232
WHY MURS? WHY SM150BFT?
Multi-Use Radio Service, or MURS, is a group of VHF frequencies
reserved world-wide for two-way communications, which allow for
encryption of terrestrial and marine movements. The SM150BFT utilizes
these frequencies for encrypted transmissions while maintaining
the option to monitor AIS marine traffic, making it a state-of-the-art
tool for applications such as law enforcement, border protection
and port security. The SM150BFT allows officers to maintain surveillance
over AIS traffic while only disclosing their own locations amongst
a specified group.
By transponding on MURS and receiving on AIS the SM150BFT provides
authorities with an integrated solution for monitoring commercial
marine activity and tracking "blue" vessels and other
assets. Unlike AIS, MURS allows for STM activity, enabling real-time
text communication between stations.
|
For U.S. Sales:
This device has not been authorized as required by the
rules of the Federal Communications Commission. This device
is not, and may not be, offered for sale or lease, or sold or
leased, until authorization has been obtained |
PRODUCT FEATURES
System Specifications
- Designation: MURS Transponder/AIS Receiver
- Physical Serial interface: RS232 or IEC 61162
- Power Supply: 12.6V
- Power Consumption: Less than 10 watts
- Temperature: (per IEC 60945)
-25°C to +70°C (Exposed)
- Compass Safe Distance: 1 meter
Navigation Specifications
- 12 channel internal GPS and antenna
Dimensions and Weights
- Diameter: 2.0 in.
- Height: 25.0 in.
- Weight: 3 lbs.
Frequencies and Channel Bandwidth
- RX AIS: 161.975 - 162.025 MHz at 25 kHz channel spacing
- RX MURS: 151.820 MHz, 151.880 MHz, 151.940 MHz at 11.25 KHz channel
spacing
154.570 MHz, 154.600 MHz at 20 KHz channel spacing
Encrypted MURS Transmitter
- TX MURS: 151.820 MHz, 151.880 MHz, 151.940 MHz at 11.25 KHz channel
spacing 154.570 MHz, 154.600 MHz at 20 KHz channel spacing
- Power Output: < 2 watts
- Harmonic Emission: < -53 dBc
- Spurious Emission: < -53 dBc
- Frequency Accuracy: +/- 3ppm
MURS Receiver
- Data Rate: 9,600 bps
- Error Rate: <20% at -107 dBm
- Adjacent Channel Rejection: 60 dB
- Blocking: 70 dB
- Intermodulation: 60 dB
- Large Signal PER: <1%
- Image Rejection: 70 dB for 20% PER
- Spurious Rejection: 70 dB for 20% PER
AIS Receiver
- AIS Data Rate: 9,600 bps
- Sensitivity: <20% PER at -107 dBm
- Adjacent Channel Rejection: 60 dB at 25 kHz
- Blocking: 70 dB
- Intermodulation: 60 dB
- Large Signal PER: < 1%
- Image Rejection: ? 70 dB for 20% PER
- Spurious Rejection: ? 70 dB for 20% PER
Short Text Messages (STM)
- Transmission Protocol: CS-TDMA
- STM Types:
- Targeted: for communication with a specific unit
- Broadcast: for communication with any unit set to receive broadcast
messages
- Group: for communication with units that have selected the sender
as part of their defined group.
For additional information on the construction and transmission of STM
please contact info@shinemicro.com
Logical Serial Interface Details:
The logical serial interface of the SM150BFT is a subset of IEC specification
61993-2, using a 38.4 kbps connection to a host computer. The received
AIS messages are output using the VDM sentence, and GPS location data
is output using the NMEA 0183 sentences.
To request full serial interface specifications, please e-mail info@shinemicro.com
or call Shine Micro at (360) 437-2503.
Simple Marine Installation
- Attach the SM150BFT to a standard 1" x 14 threaded antenna mount.
- Connect the power cable to a 12 volt power source.
- Connect the ground lug to a solid ground.
- Optionally connect the serial interface cable to a PC for STM applications
and visual display.
WARRANTY INFORMATION
Shine Micro warrants its products to be free from defects for one full
year from the date of purchase. Shine Micro will, at its sole discretion,
repair or replace any components that fail in normal use. Labor and material
costs for such repairs or replacement will be free of charge. This warranty
does not cover failures due to abuse, misuse, accidents, or unauthorized
alterations or repairs.
|
|
